FP30-800

FP30-800

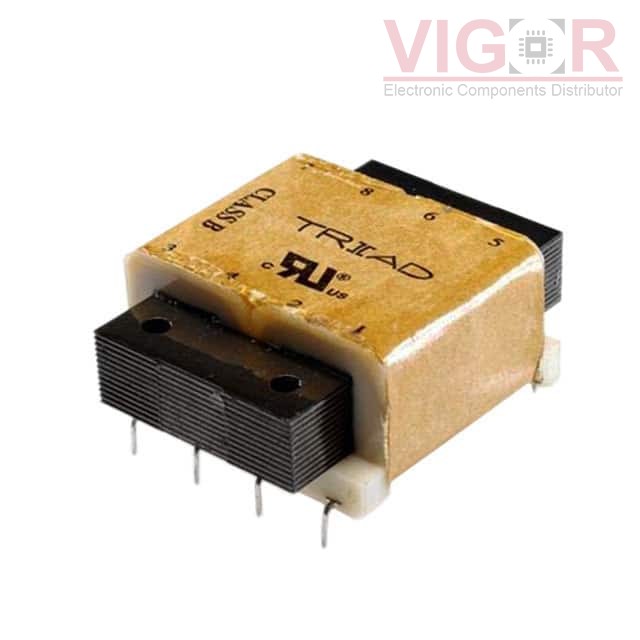

Image is for reference,
please contact us to get the real picture

Part No :

FP30-800

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 24VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
FP30-800 PDF
Availability
43 pieces
Unit Price
$17.41000

Current price of FP30-800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FP30-800 Specifications
Type Description
Series:Flat Pack™
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 15V, Series 30V
Current - Output (Max):Parallel 1.6A, Series 800mA
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:24VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:72.90mm L x 57.15mm W
Height - Seated (Max):34.93mm
Voltage - Isolation:2000Vrms
Weight:0.938 lb (425.47 g)
