GDE25-6-B

GDE25-6-B

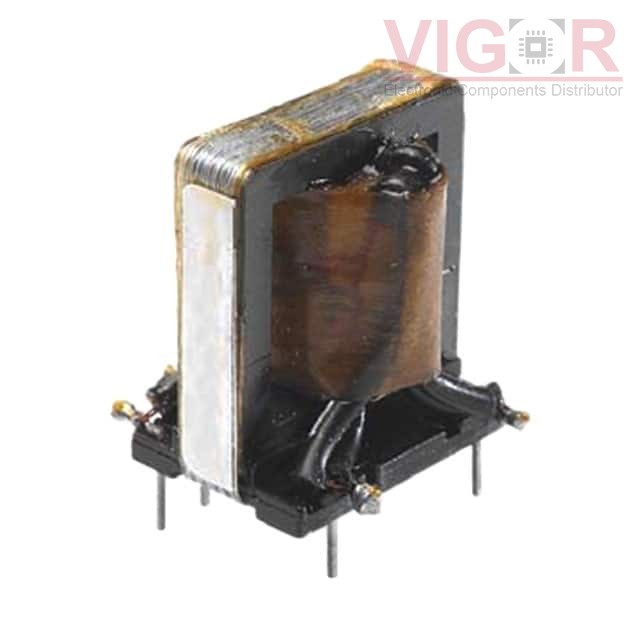

Image is for reference,
please contact us to get the real picture

Part No :

GDE25-6-B

Manufacturer
Triad Magnetics
Description
TRANSF 1.75 OHM DUAL GATE DRIVE
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
GDE25-6-B PDF
Availability
0 pieces
Unit Price
$9.53160

Current price of GDE25-6-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

GDE25-6-B Specifications
Type Description
Series:GDE25
Package:Bulk
Part Status:Active
Transformer Type:Gate Drive
Inductance:680µH
ET (Volt-Time):540VµS
Turns Ratio - Primary:Secondary:1:1.5:1.5
Mounting Type:Through Hole
Size / Dimension:1.100" L x 1.040" W (27.94mm x 26.42mm)
Height - Seated (Max):1.200" (30.48mm)
Operating Temperature:-40°C ~ 80°C
