1009C

1009C

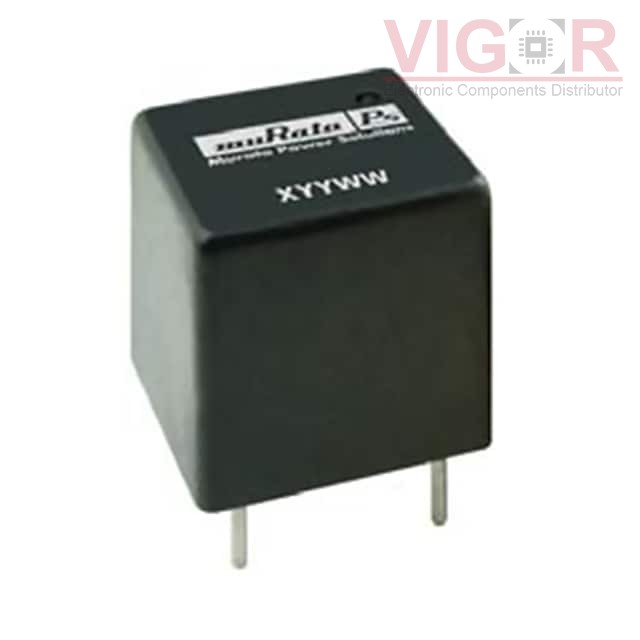

Image is for reference,
please contact us to get the real picture

Part No :

1009C

Manufacturer
Murata Power Solutions
Description
PULSE XFMR 1:1:1 22MH
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
1009C PDF
Availability
0 pieces
Unit Price
$7.24000

Current price of 1009C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1009C Specifications
Type Description
Series:1000
Package:Tube
Part Status:Active
Transformer Type:General Purpose
Inductance:22mH
ET (Volt-Time):550VµS
Turns Ratio - Primary:Secondary:1:1:1
Mounting Type:Through Hole
Size / Dimension:0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max):0.640" (16.25mm)
Operating Temperature:0°C ~ 70°C
