B82804A0304A225

B82804A0304A225

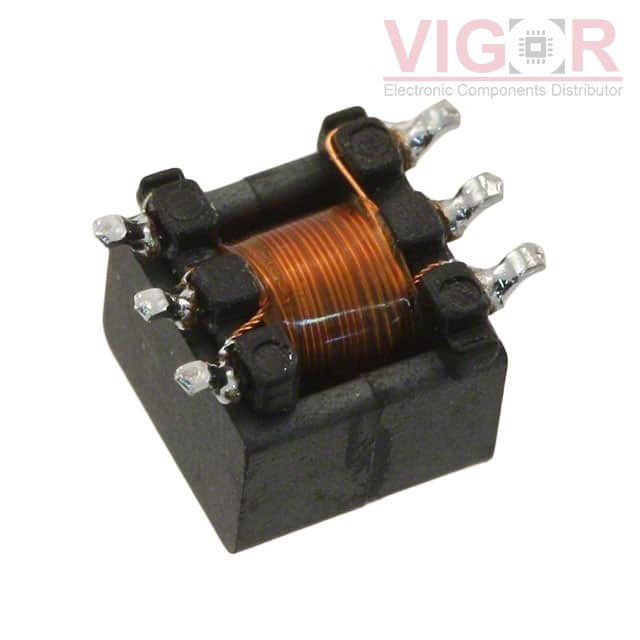

Image is for reference,
please contact us to get the real picture

Part No :

B82804A0304A225

Manufacturer
TDK EPCOS
Description
PULSE XFMR 2.5:1:1 300UH
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B82804A0304A225 PDF
Availability
521 pieces
Unit Price
$3.86000

Current price of B82804A0304A225 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82804A0304A225 Specifications
Type Description
Series:EP5
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:Gate Drive
Inductance:300µH
ET (Volt-Time):23.8VµS
Turns Ratio - Primary:Secondary:2.5:1:1
Mounting Type:Surface Mount
Size / Dimension:0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max):0.213" (5.40mm)
Operating Temperature:-40°C ~ 125°C
