760301302

760301302

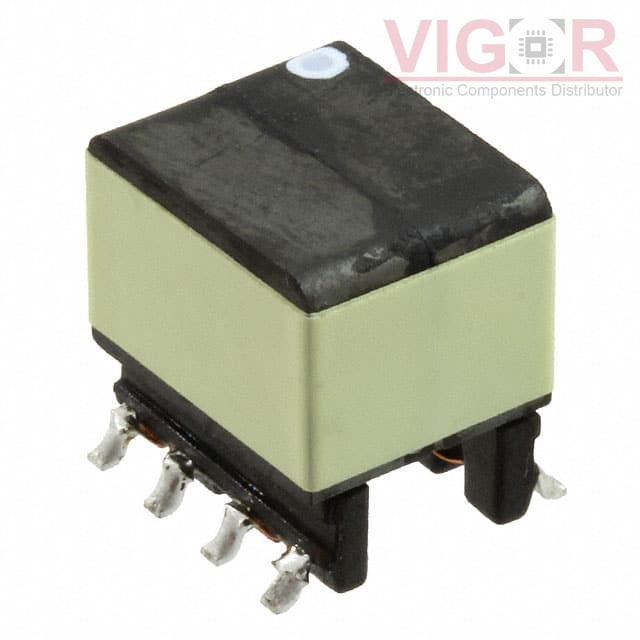

Image is for reference,
please contact us to get the real picture

Part No :

760301302

Manufacturer
Würth Elektronik Midcom
Description
XFRMR GATE DRIVE SMD
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
760301302 PDF
Availability
1374 pieces
Unit Price
$7.36000

Current price of 760301302 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760301302 Specifications
Type Description
Series:WE-GDT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:Gate Drive
Inductance:750µH
ET (Volt-Time):102VµS
Turns Ratio - Primary:Secondary:1:1
Mounting Type:Surface Mount
Size / Dimension:0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max):0.433" (11.00mm)
Operating Temperature:-40°C ~ 125°C
