B82804A0694A115

B82804A0694A115

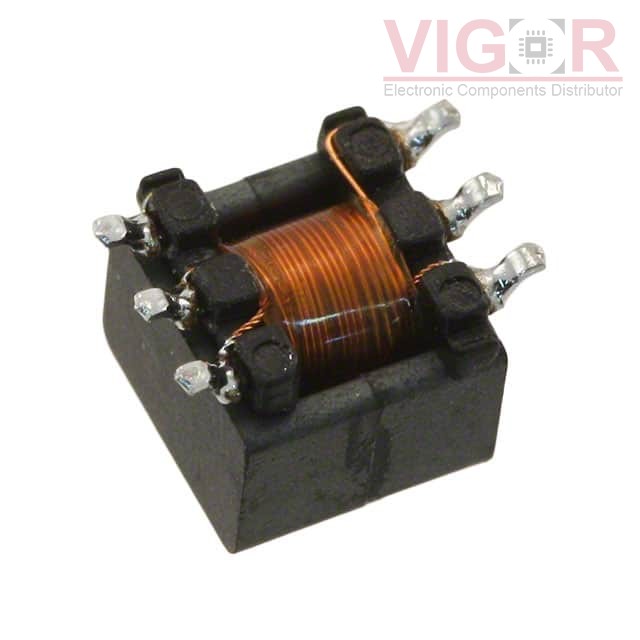

Image is for reference,
please contact us to get the real picture

Part No :

B82804A0694A115

Manufacturer
TDK EPCOS
Description
PULSE XFMR 1.5:1 690UH
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
B82804A0694A115 PDF
Availability
768 pieces
Unit Price
$3.67000

Current price of B82804A0694A115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82804A0694A115 Specifications
Type Description
Series:EP5
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:Gate Drive
Inductance:690µH
ET (Volt-Time):40.8VµS
Turns Ratio - Primary:Secondary:1.5:1
Mounting Type:Surface Mount
Size / Dimension:0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max):0.213" (5.40mm)
Operating Temperature:-40°C ~ 125°C
