B82804A0324A220

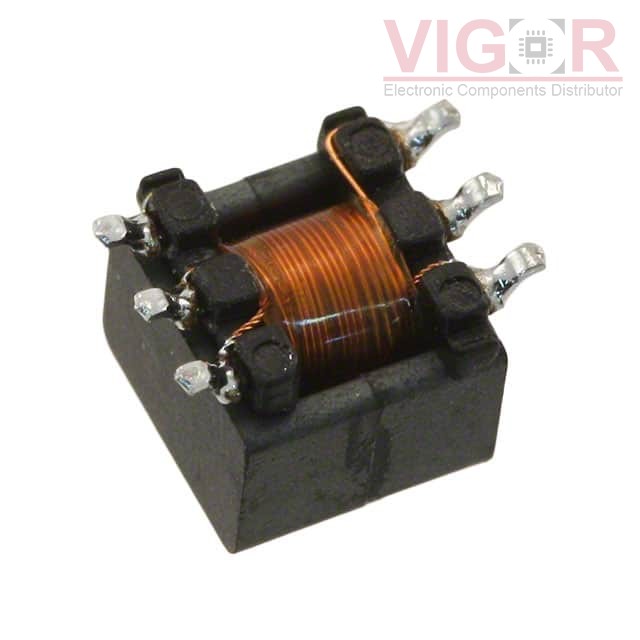

Image is for reference,
please contact us to get the real picture

Part No :: B82804A0324A220

Manufacturer: TDK EPCOS

Description: PULSE XFMR 2:1:1 317UH

Catalog: Pulse Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: B82804A0324A220 PDF

Availability: 541 pieces

Unit Price: ~~$3.67000~~

Current price of B82804A0324A220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82804A0324A220 Specifications

Type	Description
Series:	EP5
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	Gate Drive
Inductance:	317µH
ET (Volt-Time):	24.5VµS
Turns Ratio - Primary:Secondary:	2:1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max):	0.213" (5.40mm)
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
