G509

G509

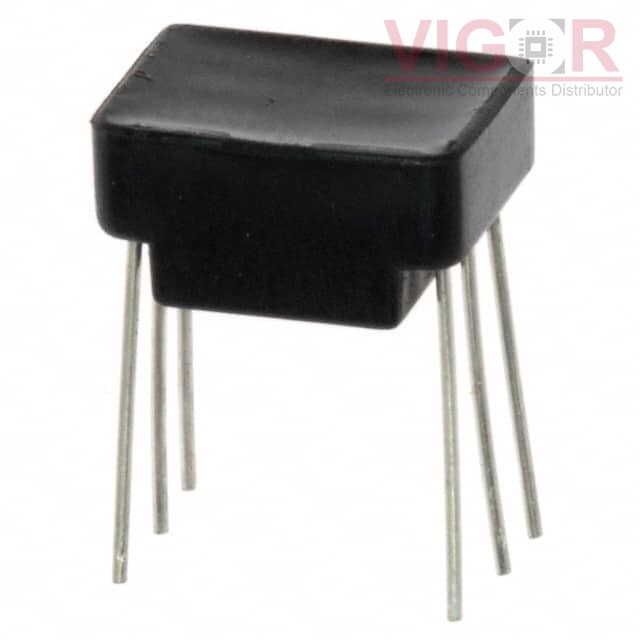

Image is for reference,
please contact us to get the real picture

Part No :

G509

Manufacturer
Tamura
Description
TRANSFORMER 0.50MH 1CT:1CT PULSE
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
G509 PDF
Availability
445 pieces
Unit Price
$11.16000

Current price of G509 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G509 Specifications
Type Description
Series:G5
Package:Tube
Part Status:Active
Transformer Type:Isolation and Data Interface (Encapsulated)
Inductance:500µH
ET (Volt-Time):8.5VµS
Turns Ratio - Primary:Secondary:1CT:1CT
Mounting Type:Through Hole
Size / Dimension:0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max):0.250" (6.35mm)
Operating Temperature:0°C ~ 70°C
