HX1224CNL

HX1224CNL

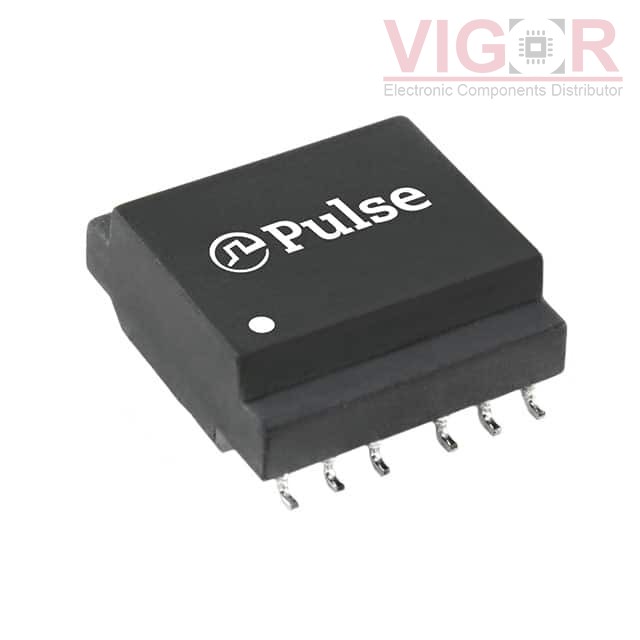

Image is for reference,
please contact us to get the real picture

Part No :

HX1224CNL

Manufacturer
PulseLarsen Antenna
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
HX1224CNL PDF
Availability
707 pieces
Unit Price
$6.75000

Current price of HX1224CNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HX1224CNL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Transformer Type:LAN 10/100 Base-T
Inductance:350µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type:Surface Mount
Size / Dimension:0.537" L x 0.570" W (13.64mm x 14.48mm)
Height - Seated (Max):0.245" (6.22mm)
Operating Temperature:-40°C ~ 85°C
