750341134

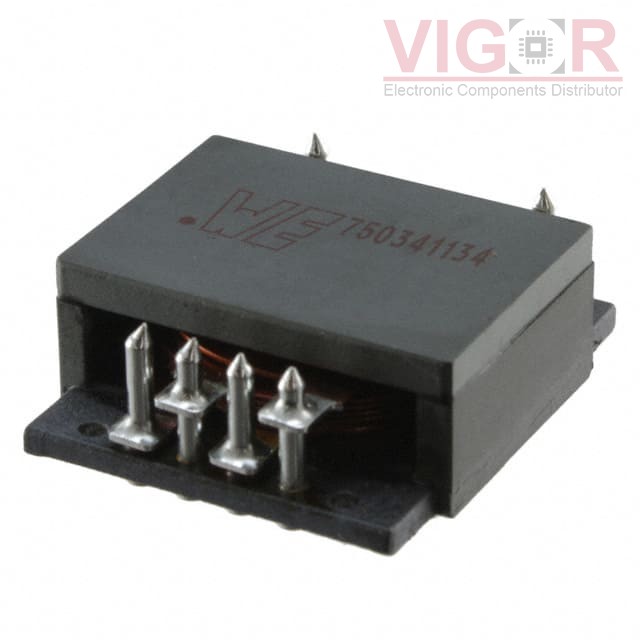

Image is for reference,
please contact us to get the real picture

Part No :: 750341134

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER PLANAR 70UH SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: May 19 - May 23 2024

DataSheet: 750341134 PDF

Availability: 26 pieces

Unit Price: ~~$19.32000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 750341134 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

750341134 Specifications

Type	Description
Series:	WE-FW, MID-PLN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500VDC
Inductance @ Frequency:	70µH @ 100kHz
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	1.050" L x 1.154" W (26.67mm x 29.30mm)
Height - Seated (Max):	0.418" (10.62mm)
Footprint:	1.050" L x 1.154" W (26.67mm x 29.30mm)
Style:	Planar

Please confirm the specifications of the products when ordering.
