750315504

750315504

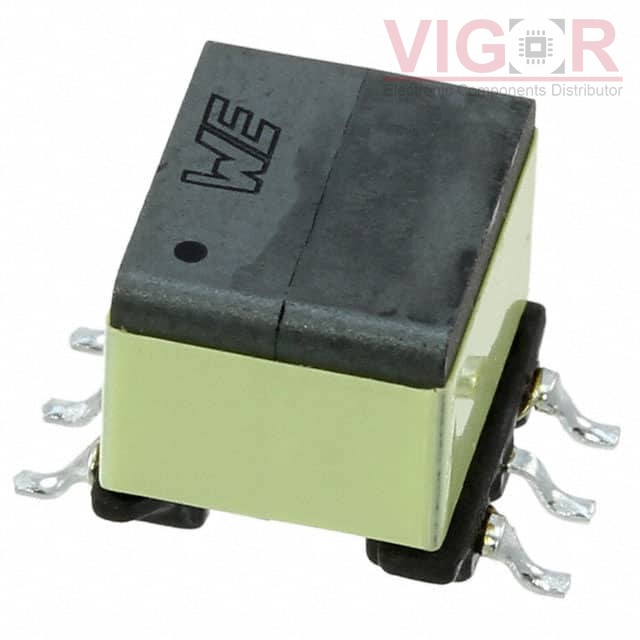

Image is for reference,
please contact us to get the real picture

Part No :

750315504

Manufacturer
Würth Elektronik Midcom
Description
XFRMR RES CONV DC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750315504 PDF
Availability
461 pieces
Unit Price
$3.43000

Current price of 750315504 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750315504 Specifications
Type Description
Series:WE-FW, MID-HB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Resonant Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:3 ~ 3.6V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:2.5mH @ 10kHz
Frequency:30 ~ 70kHz
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.385" (9.78mm)
Footprint:0.310" L x 0.330" W (7.87mm x 8.38mm)
Style:-
