750811023

750811023

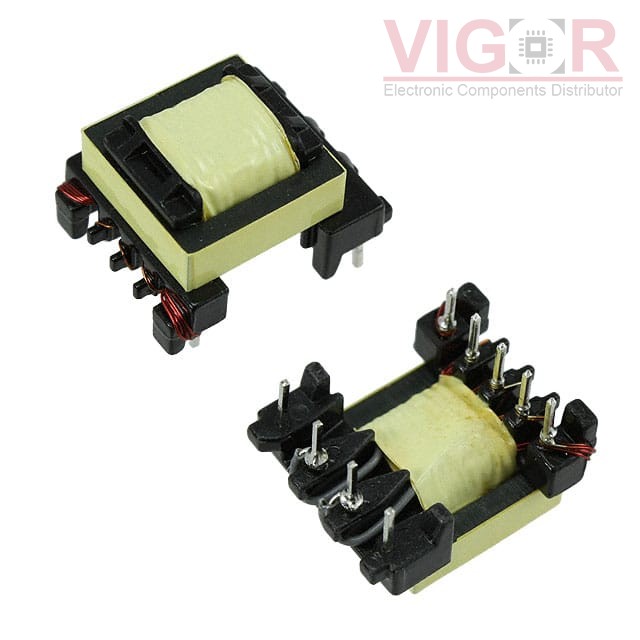

Image is for reference,
please contact us to get the real picture

Part No :

750811023

Manufacturer
Würth Elektronik Midcom
Description
TRANS OFF LINE POWER PI LNK603
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750811023 PDF
Availability
3 pieces
Unit Price
$8.87000

Current price of 750811023 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750811023 Specifications
Type Description
Series:WE-UNIT, MID-OLPI
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:LNK603
Chipset Manufacturer:Power Integrations
Voltage - Primary:120 ~ 375V
Voltage - Auxiliary:-
Voltage - Isolation:4000Vrms
Inductance @ Frequency:2.28mH @ 10kHz
Frequency:66kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:-
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.800" L x 0.960" W (20.32mm x 24.38mm)
Style:-
