750311567

750311567

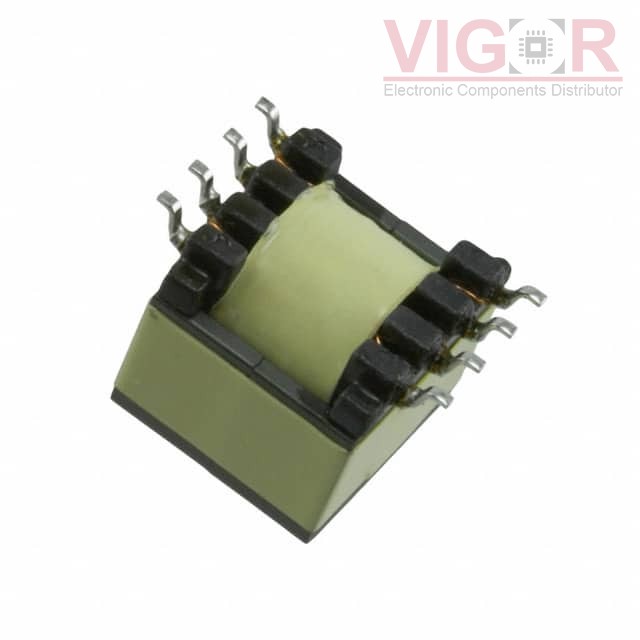

Image is for reference,
please contact us to get the real picture

Part No :

750311567

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT3575LT3748 7.0UH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750311567 PDF
Availability
171 pieces
Unit Price
$9.08000

Current price of 750311567 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311567 Specifications
Type Description
Series:WE-FB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:Linear Technology
Voltage - Primary:10 ~ 40V
Voltage - Auxiliary:10V @ 20mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:7µH @ 250kHz
Frequency:250kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.455" (11.56mm)
Footprint:0.525" L x 0.600" W (13.34mm x 15.24mm)
Style:-
