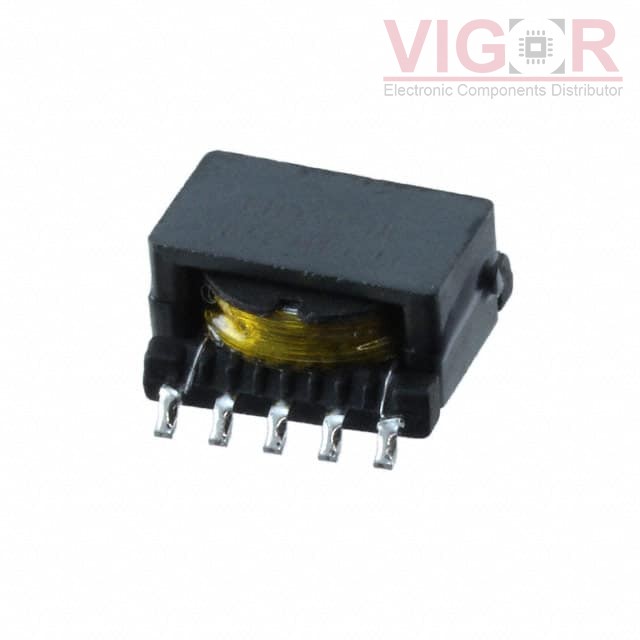

PH9363NLT

PH9363NLT

Image is for reference,
please contact us to get the real picture

Part No :

PH9363NLT

Manufacturer
PulseLarsen Antenna
Description
XFMR FLYBACK DC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PH9363NLT PDF
Availability
0 pieces
Unit Price
$4.44000

Current price of PH9363NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH9363NLT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:ACPL-32JT, ACPL-302J
Chipset Manufacturer:-
Voltage - Primary:8 ~ 18V
Voltage - Auxiliary:-
Voltage - Isolation:2500Vrms
Inductance @ Frequency:-
Frequency:80kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.472" L x 0.366" W (12.00mm x 9.30mm)
Height - Seated (Max):0.266" (6.75mm)
Footprint:0.472" L x 0.512" W (12.00mm x 13.00mm)
Style:-
