750311271

750311271

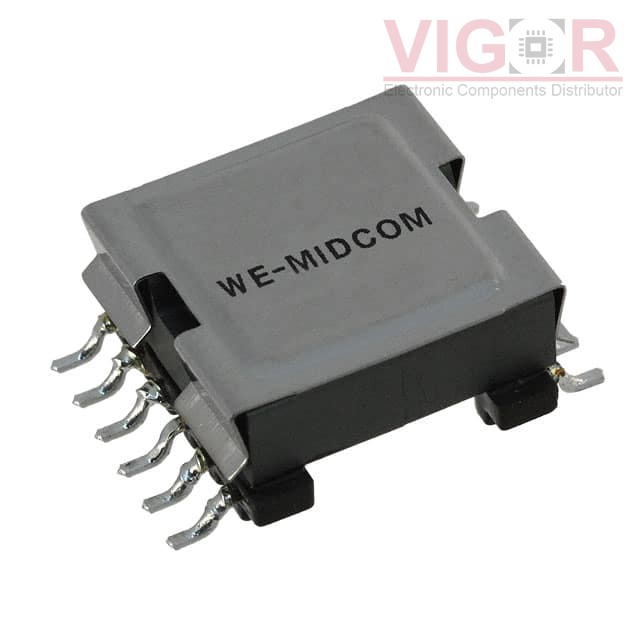

Image is for reference,
please contact us to get the real picture

Part No :

750311271

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT1725 20.4UH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750311271 PDF
Availability
0 pieces
Unit Price
$6.16000

Current price of 750311271 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311271 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT1725
Chipset Manufacturer:Linear Technology
Voltage - Primary:18 ~ 36V
Voltage - Auxiliary:12V @ 15mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:20.4µH @ 10kHz
Frequency:150 ~ 300kHz
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.355" (9.02mm)
Footprint:0.675" L x 0.875" W (17.15mm x 22.23mm)
Style:-
