749196547

749196547

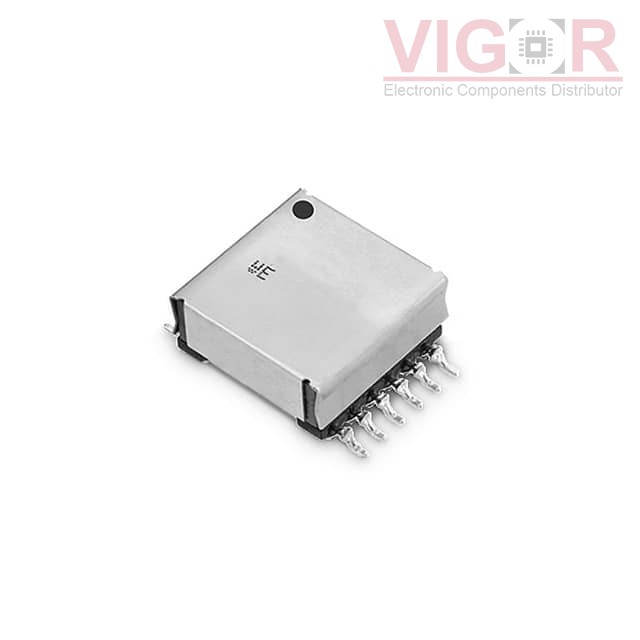

Image is for reference,
please contact us to get the real picture

Part No :

749196547

Manufacturer
Würth Elektronik Midcom
Description
WE-FLEX FLEXIBLE TRANSFORMER FOR
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
749196547 PDF
Availability
0 pieces
Unit Price
$9.27400

Current price of 749196547 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

749196547 Specifications
Type Description
Series:WE-FLEX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flexible
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:3.4µH @ 100kHz
Frequency:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.827" L x 0.846" W (21.01mm x 21.49mm)
Height - Seated (Max):0.472" (11.99mm)
Footprint:1.161" L x 0.846" W (29.49mm x 21.49mm)
Style:-
