750813021

750813021

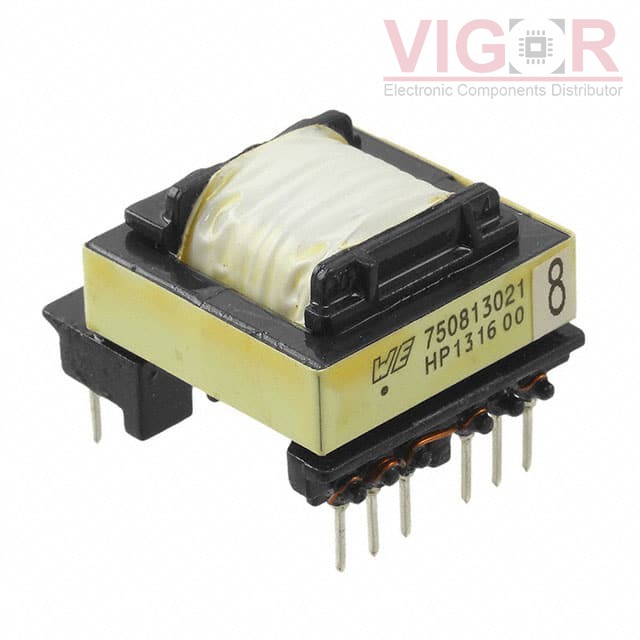

Image is for reference,
please contact us to get the real picture

Part No :

750813021

Manufacturer
Würth Elektronik Midcom
Description
OFFLINE XFRM WE-UNIT TI LM3445
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750813021 PDF
Availability
0 pieces
Unit Price
$5.77700

Current price of 750813021 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750813021 Specifications
Type Description
Series:WE-UNIT
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:LM3445
Chipset Manufacturer:Texas Instruments
Voltage - Primary:120 ~ 191V
Voltage - Auxiliary:12V @ 20mA
Voltage - Isolation:3000Vrms
Inductance @ Frequency:1.6mH @ 60kHz
Frequency:60kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.874" L x 0.984" W (22.20mm x 25.00mm)
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.874" L x 0.984" W (22.20mm x 25.00mm)
Style:-
