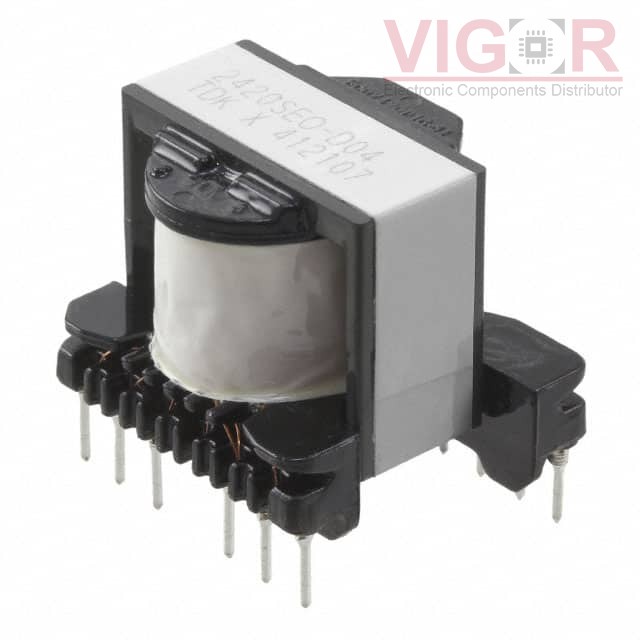

ECO2420SEO-D04V0110

Image is for reference,
please contact us to get the real picture

Part No :: ECO2420SEO-D04V0110

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ECO2420SEO-D04V0110 PDF

Availability: 0 pieces

Unit Price: ~~$6.34125~~

Current price of ECO2420SEO-D04V0110 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECO2420SEO-D04V0110 Specifications

Type	Description
Series:	ECO
Package:	Bulk
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	214 ~ 404V
Voltage - Auxiliary:	12V @ 1.25A, 14V @ 250mA
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	1.54mH @ 10kHz
Frequency:	-
Operating Temperature:	-30°C ~ 120°C
Mounting Type:	Through Hole
Size / Dimension:	1.240" L x 0.984" W (31.50mm x 25.00mm)
Height - Seated (Max):	1.043" (26.50mm)
Footprint:	1.240" L x 0.984" W (31.50mm x 25.00mm)
Style:	-
