750811644

750811644

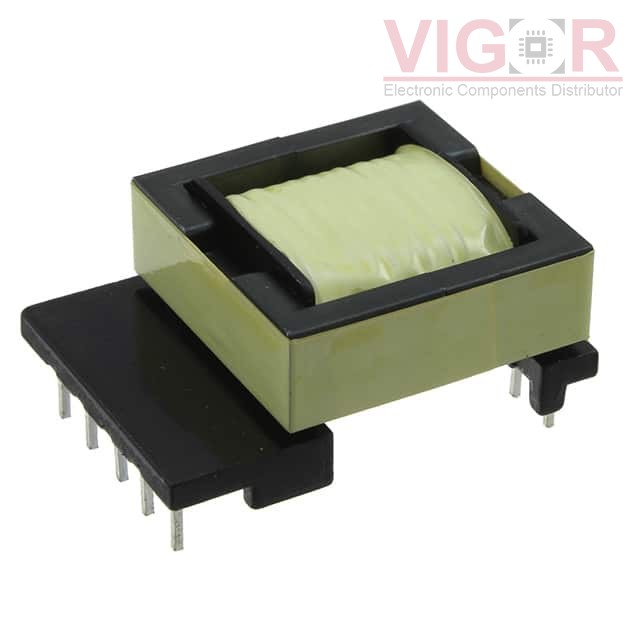

Image is for reference,
please contact us to get the real picture

Part No :

750811644

Manufacturer
Würth Elektronik Midcom
Description
THT OFFLINE TRANSFORMER WE-UNIT
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
750811644 PDF
Availability
8 pieces
Unit Price
$7.81000

Current price of 750811644 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750811644 Specifications
Type Description
Series:WE-UNIT, MID-OLEFD
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:120 ~ 375V
Voltage - Auxiliary:20V
Voltage - Isolation:4500Vrms
Inductance @ Frequency:800µH @ 10kHz
Frequency:68 ~ 150kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.846" L x 1.142" W (21.50mm x 29.00mm)
Height - Seated (Max):0.477" (12.12mm)
Footprint:0.846" L x 1.142" W (21.50mm x 29.00mm)
Style:-
