750311475

750311475

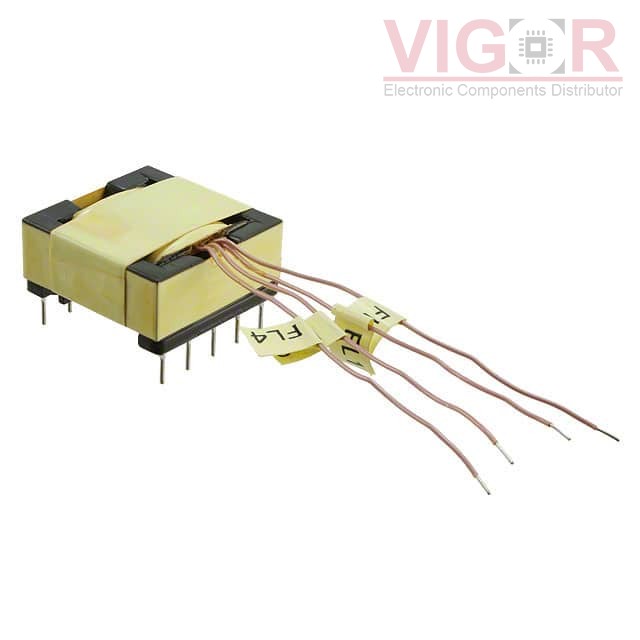

Image is for reference,
please contact us to get the real picture

Part No :

750311475

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK NCL30000 1.72MH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
750311475 PDF
Availability
49 pieces
Unit Price
$11.54000

Current price of 750311475 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311475 Specifications
Type Description
Series:WE-UNIT, MID-OLON
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:NCL30000
Chipset Manufacturer:On Semiconductor
Voltage - Primary:127 ~ 431V
Voltage - Auxiliary:-
Voltage - Isolation:4500Vrms
Inductance @ Frequency:1.72mH @ 10kHz
Frequency:39kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:1.060" L x 1.050" W (26.92mm x 26.67mm)
Height - Seated (Max):0.575" (14.60mm)
Footprint:1.060" L x 1.050" W (26.92mm x 26.67mm)
Style:-
