750311564

750311564

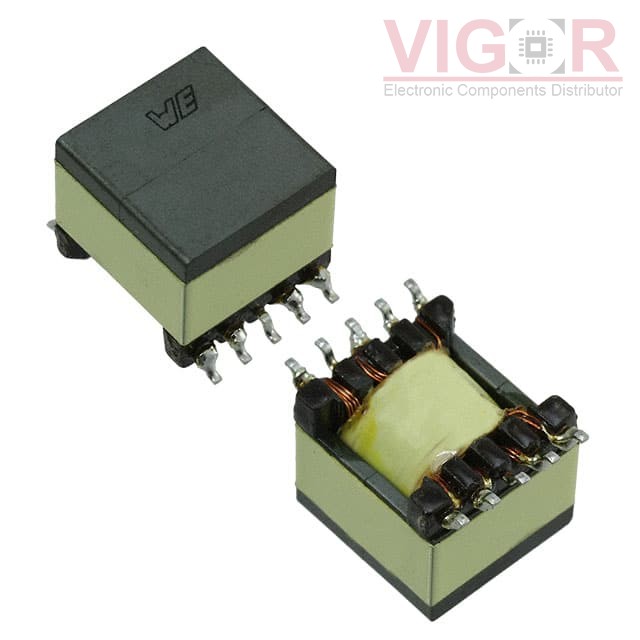

Image is for reference,
please contact us to get the real picture

Part No :

750311564

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT3748 LT3575 SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
750311564 PDF
Availability
2189 pieces
Unit Price
$9.08000

Current price of 750311564 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311564 Specifications
Type Description
Series:WE-FB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:Linear Technology
Voltage - Primary:10 ~ 40V
Voltage - Auxiliary:8V @ 20mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:9.07µH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.505" (12.83mm)
Footprint:0.530" L x 0.699" W (13.46mm x 17.75mm)
Style:-
