750311595

750311595

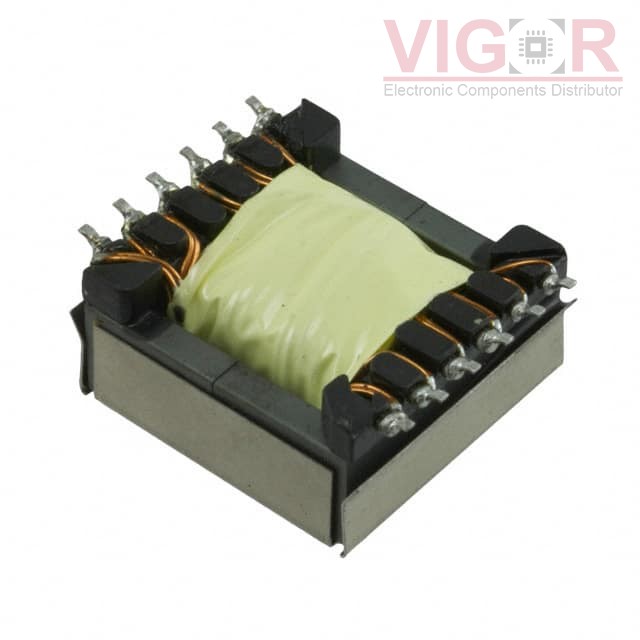

Image is for reference,
please contact us to get the real picture

Part No :

750311595

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT3748 12UH SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
750311595 PDF
Availability
101 pieces
Unit Price
$13.48000

Current price of 750311595 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311595 Specifications
Type Description
Series:WE-FB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:Linear Technology
Voltage - Primary:30 ~ 75V
Voltage - Auxiliary:10V
Voltage - Isolation:1500Vrms
Inductance @ Frequency:12µH @ 150kHz
Frequency:150kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.544" (13.82mm)
Footprint:1.064" L x 1.272" W (27.03mm x 32.31mm)
Style:-
