B82802A0012A315

B82802A0012A315

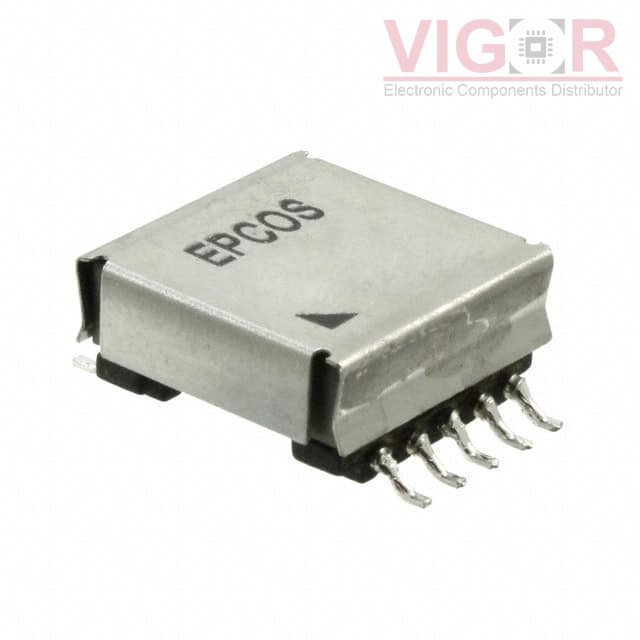

Image is for reference,
please contact us to get the real picture

Part No :

B82802A0012A315

Manufacturer
TDK EPCOS
Description
TRANSFORMER FLYBACK 36-60V SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B82802A0012A315 PDF
Availability
184 pieces
Unit Price
$3.83000

Current price of B82802A0012A315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82802A0012A315 Specifications
Type Description
Series:B82802A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:36 ~ 60V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:100µH @ 100kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.650" L x 0.681" W (16.50mm x 17.30mm)
Height - Seated (Max):0.341" (8.65mm)
Footprint:0.650" L x 0.902" W (16.50mm x 22.90mm)
Style:-
