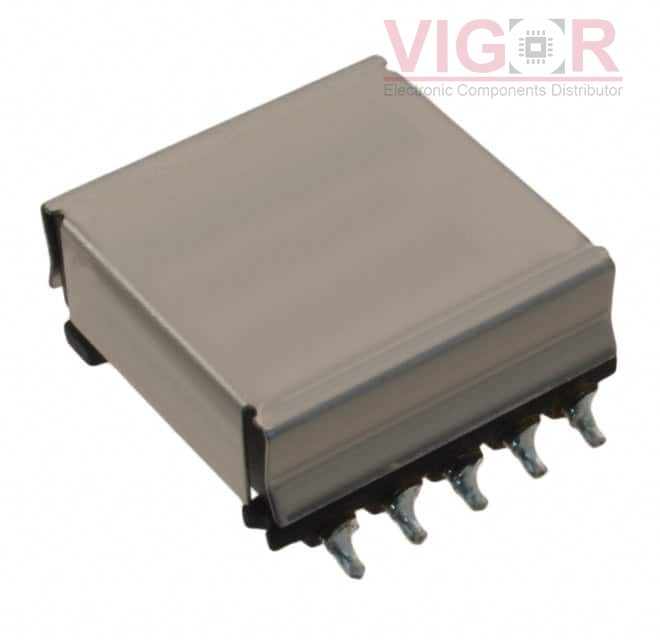

B82802A0030A320

B82802A0030A320

Image is for reference,
please contact us to get the real picture

Part No :

B82802A0030A320

Manufacturer
TDK EPCOS
Description
TRANSFORMER FLYBACK 36-60V SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B82802A0030A320 PDF
Availability
0 pieces
Unit Price
$3.03600

Current price of B82802A0030A320 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82802A0030A320 Specifications
Type Description
Series:B82802A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:36 ~ 60V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:40µH @ 100kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.866" L x 0.878" W (22.00mm x 22.30mm)
Height - Seated (Max):0.421" (10.70mm)
Footprint:0.866" L x 1.035" W (22.00mm x 26.30mm)
Style:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 750315240

750315240

XFRMR FWD P-P DC/DC CONV SMD
HOT 750316019

750316019

PUSH-PULL TRANSFORMER TOR5.8/3.1

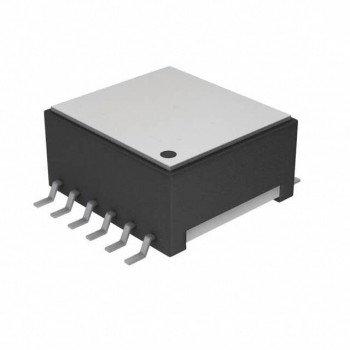

HOT 749196511
