750342104

750342104

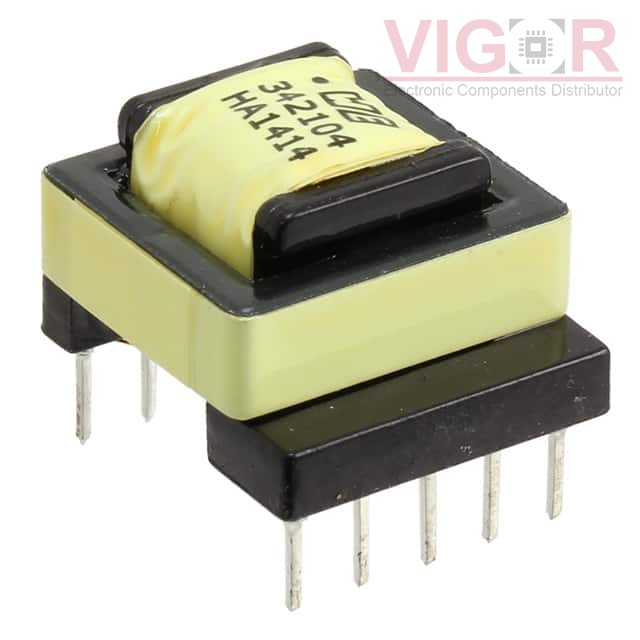

Image is for reference,
please contact us to get the real picture

Part No :

750342104

Manufacturer
Würth Elektronik Midcom
Description
WE-FB FLYBACK TRANSFORMER
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
750342104 PDF
Availability
296 pieces
Unit Price
$5.25000

Current price of 750342104 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750342104 Specifications
Type Description
Series:WE-FB, MID-OLTI
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:UCC287xx, UCC289xx
Chipset Manufacturer:Texas Instruments
Voltage - Primary:85 ~ 264V
Voltage - Auxiliary:12V @ 60mA
Voltage - Isolation:3750Vrms
Inductance @ Frequency:1.3mH @ 50kHz
Frequency:80kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.665" L x 0.740" W (16.90mm x 18.80mm)
Height - Seated (Max):0.529" (13.44mm)
Footprint:0.665" L x 0.740" W (16.90mm x 18.80mm)
Style:-
