750815542

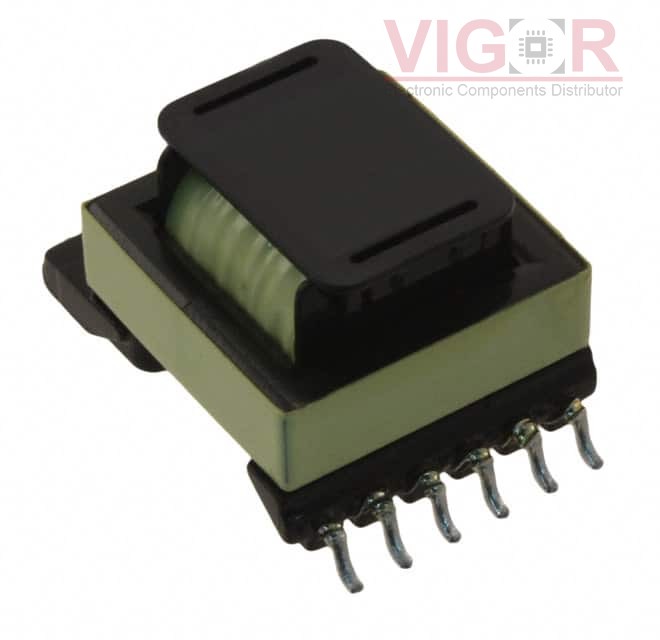

Image is for reference,
please contact us to get the real picture

Part No :: 750815542

Manufacturer: Würth Elektronik Midcom

Description: TRANS 3000V SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: 750815542 PDF

Availability: 0 pieces

Unit Price: ~~$7.26900~~

Current price of 750815542 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750815542 Specifications

Type	Description
Series:	WE-UNIT, MID-OLEE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	LED Drivers, AC/DC SMPS
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	195 ~ 265V
Voltage - Auxiliary:	-
Voltage - Isolation:	3000Vrms
Inductance @ Frequency:	5mH @ 10kHz
Frequency:	80 ~ 200kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.548" (13.92mm)
Footprint:	0.700" L x 1.028" W (17.78mm x 26.10mm)
Style:	-
