750811050

750811050

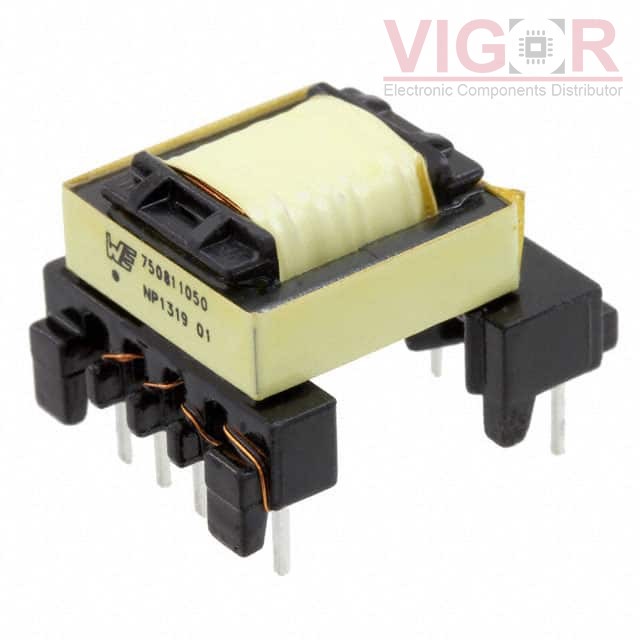

Image is for reference,
please contact us to get the real picture

Part No :

750811050

Manufacturer
Würth Elektronik Midcom
Description
FLYBACK XFRM WE-FB LT LT3748
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
750811050 PDF
Availability
0 pieces
Unit Price
$4.70900

Current price of 750811050 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750811050 Specifications
Type Description
Series:WE-FB
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT3748
Chipset Manufacturer:Linear Technology
Voltage - Primary:100 ~ 400V
Voltage - Auxiliary:15V
Voltage - Isolation:4500Vrms
Inductance @ Frequency:1.5mH @ 10kHz
Frequency:70 ~ 130kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:-
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.800" L x 0.960" W (20.32mm x 24.38mm)
Style:-
