750311269

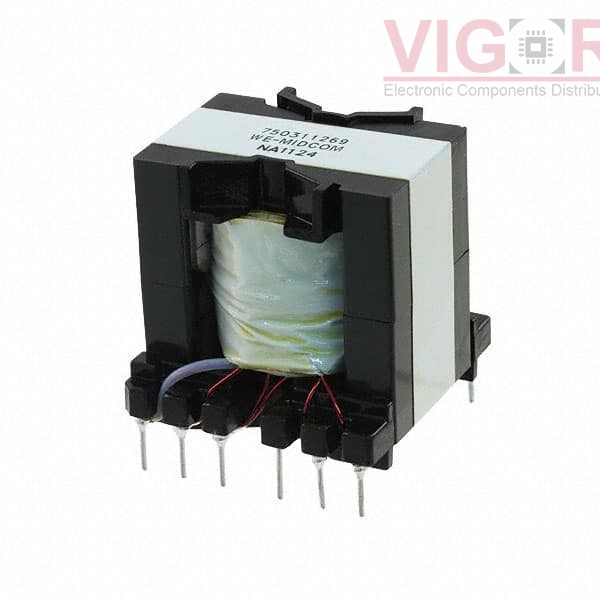

Image is for reference,
please contact us to get the real picture

Part No :: 750311269

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER FLYBACK NCL30001

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: 750311269 PDF

Availability: 0 pieces

Unit Price: ~~$17.75000~~

Current price of 750311269 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311269 Specifications

Type	Description
Series:	WE-FB, MID-OLON
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	NLC30001
Chipset Manufacturer:	On Semiconductor
Voltage - Primary:	85 ~ 265V
Voltage - Auxiliary:	-
Voltage - Isolation:	3750Vrms
Inductance @ Frequency:	600µH @ 10kHz
Frequency:	70kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	1.400" L x 1.470" W (35.56mm x 37.34mm)
Height - Seated (Max):	1.355" (34.42mm)
Footprint:	1.400" L x 1.470" W (35.56mm x 37.34mm)
Style:	-
