PH0813CNLT

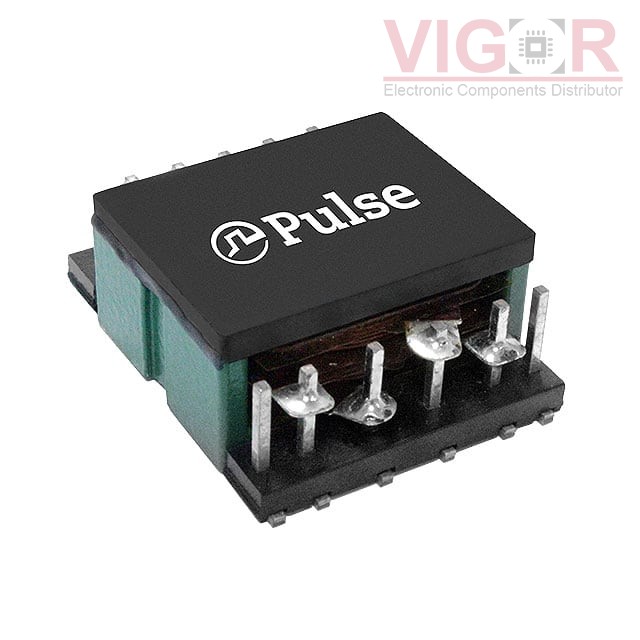

Image is for reference,
please contact us to get the real picture

Part No :: PH0813CNLT

Manufacturer: PulseLarsen Antenna

Description: XFMR, ER19 PLANAR, 5:5:2:1, SMT

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: PH0813CNLT PDF

Availability: 0 pieces

Unit Price: ~~$5.92200~~

Current price of PH0813CNLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH0813CNLT Specifications

Type	Description
Series:	PH08XXCNL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	-
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	-
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.970" W (21.59mm x 24.64mm)
Height - Seated (Max):	0.378" (9.60mm)
Footprint:	-
Style:	Planar

Please confirm the specifications of the products when ordering.
