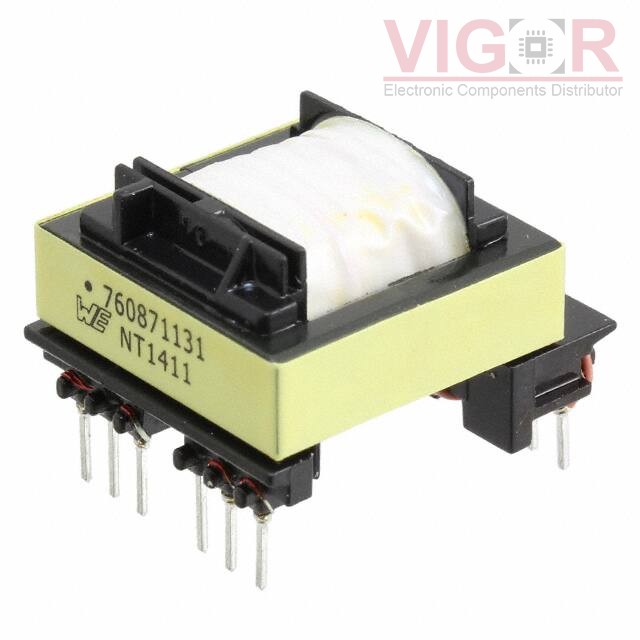

Image is for reference,
please contact us to get the real picture

Part No :

760871131

Manufacturer
Würth Elektronik Midcom
Description
OFFLINE XFRM WE-UNIT ST VIPER26
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
760871131 PDF
Availability
659 pieces
Unit Price
$7.99000

Current price of 760871131 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760871131 Specifications
Type Description
Series:WE-UNIT, MID-OLSTM
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:-
Chipset Manufacturer:STMicroelectronics
Voltage - Primary:120 ~ 420V
Voltage - Auxiliary:15V @ 100mA
Voltage - Isolation:4000Vrms
Inductance @ Frequency:1.396mH @ 10kHz
Frequency:60kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.874" L x 0.984" W (22.20mm x 25.00mm)
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.874" L x 0.984" W (22.20mm x 25.00mm)
Style:-
