750871011

750871011

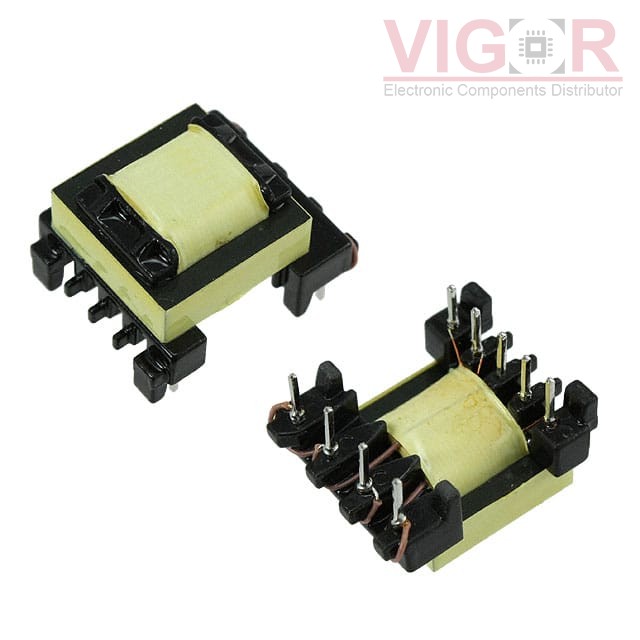

Image is for reference,
please contact us to get the real picture

Part No :

750871011

Manufacturer
Würth Elektronik Midcom
Description
TRANS OFF LINE POWER ST VIPER15L
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
750871011 PDF
Availability
0 pieces
Unit Price
$5.71200

Current price of 750871011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750871011 Specifications
Type Description
Series:WE-UNIT, MID-OLSTM
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:VIPER15L
Chipset Manufacturer:STMicroelectronics
Voltage - Primary:120 ~ 385V
Voltage - Auxiliary:12V @ 10mA
Voltage - Isolation:4000Vrms
Inductance @ Frequency:4mH @ 10kHz
Frequency:50 ~ 140kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:-
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.787" L x 0.975" W (20.00mm x 24.00mm)
Style:-
