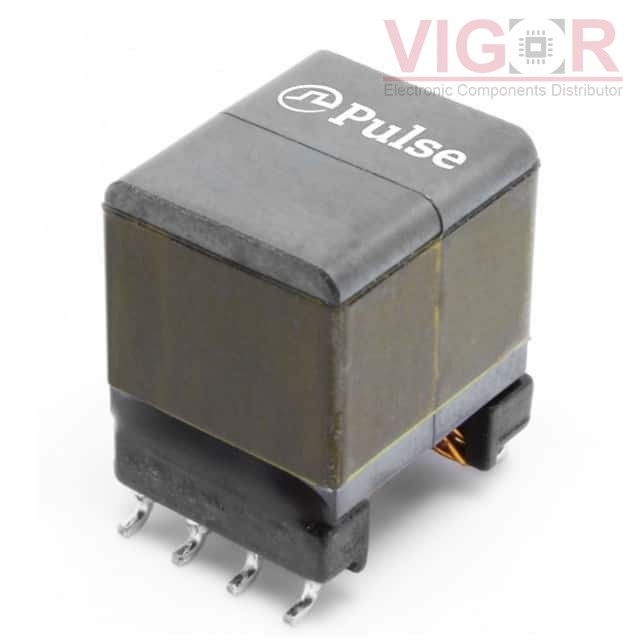

PA5100.003NLT

PA5100.003NLT

Image is for reference,
please contact us to get the real picture

Part No :

PA5100.003NLT

Manufacturer
PulseLarsen Antenna
Description
TRANSFORMER, FORWARD, EP7 PLUS,
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
PA5100.003NLT PDF
Availability
125 pieces
Unit Price
$3.34000

Current price of PA5100.003NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5100.003NLT Specifications
Type Description
Series:PA5100XXXNL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:33 ~ 57V
Voltage - Auxiliary:-
Voltage - Isolation:2250V
Inductance @ Frequency:-
Frequency:200kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.535" L x 0.433" W (13.60mm x 11.00mm)
Height - Seated (Max):0.610" (15.50mm)
Footprint:0.535" L x 0.433" W (13.60mm x 11.00mm)
Style:Wirewound
