750341547

750341547

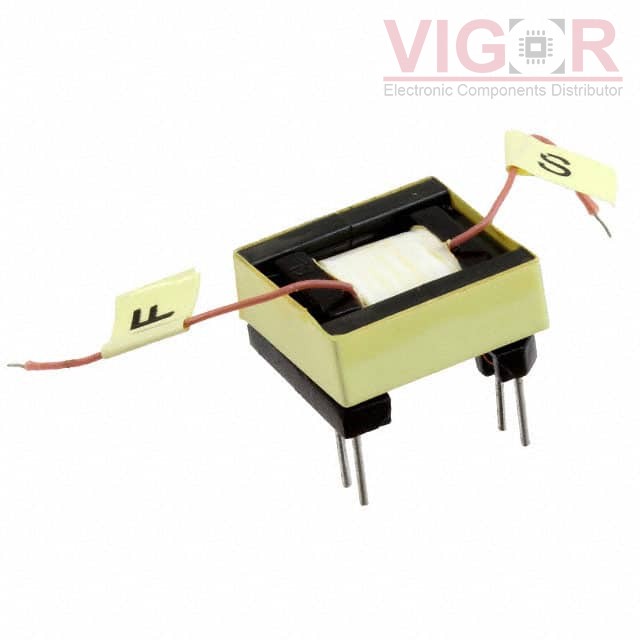

Image is for reference,
please contact us to get the real picture

Part No :

750341547

Manufacturer
Würth Elektronik Midcom
Description
XFRMR FLYBACK DC/DC CONV TH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
750341547 PDF
Availability
0 pieces
Unit Price
$3.32600

Current price of 750341547 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750341547 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:TPS92315
Chipset Manufacturer:Texas Instruments
Voltage - Primary:85 ~ 277V
Voltage - Auxiliary:21V @ 10mA
Voltage - Isolation:3000Vrms
Inductance @ Frequency:1.5mH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.575" L x 0.575" W (14.60mm x 14.60mm)
Height - Seated (Max):0.340" (8.64mm)
Footprint:0.575" L x 0.575" W (14.60mm x 14.60mm)
Style:-
