750313970

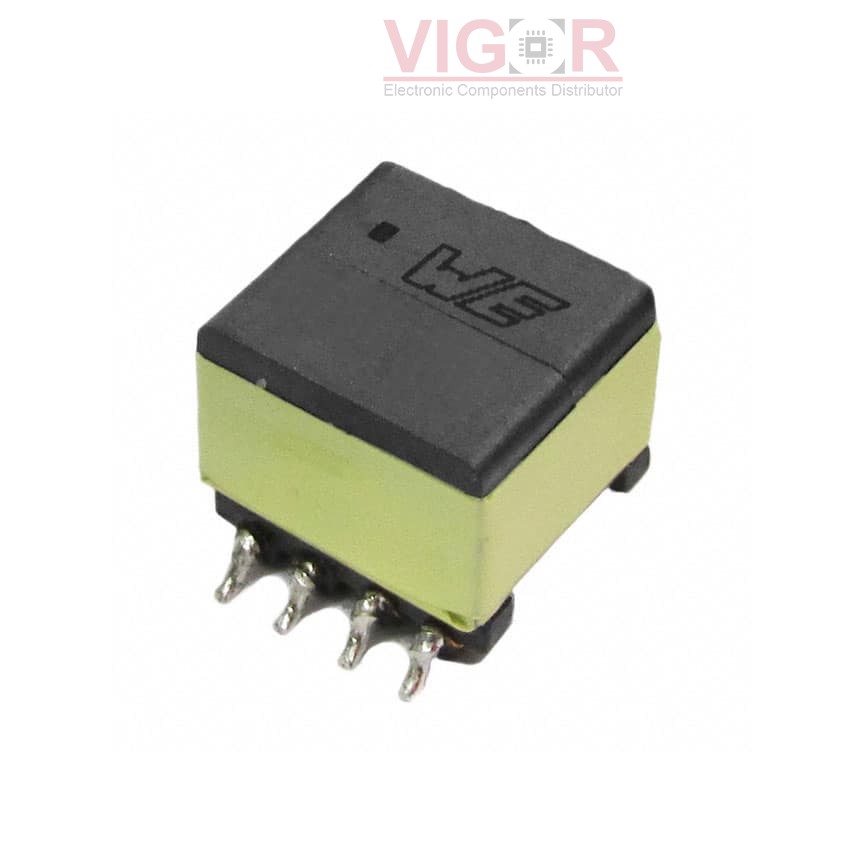

Image is for reference,
please contact us to get the real picture

Part No :: 750313970

Manufacturer: Würth Elektronik Midcom

Description: TRANS FLYBACK LT8301

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 750313970 PDF

Availability: 250 pieces

Unit Price: ~~$4.93000~~

Current price of 750313970 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750313970 Specifications

Type	Description
Series:	WE-FB, MID-FLYLT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT8301
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	18 ~ 42V
Voltage - Auxiliary:	-
Voltage - Isolation:	1500Vrms
Inductance @ Frequency:	40µH @ 10kHz
Frequency:	200 ~ 300kHz
Operating Temperature:	-
Mounting Type:	Surface Mount
Size / Dimension:	-
Height - Seated (Max):	0.450" (11.43mm)
Footprint:	0.525" L x 0.600" W (13.34mm x 15.24mm)
Style:	-

Please confirm the specifications of the products when ordering.
