749196231

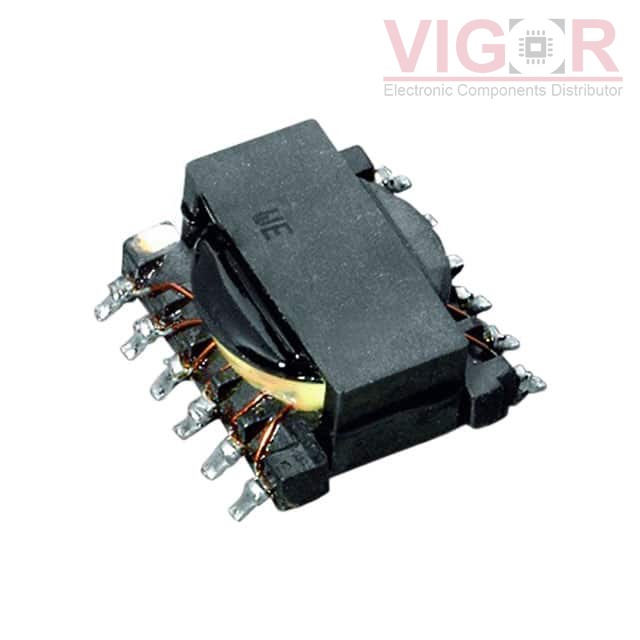

Image is for reference,
please contact us to get the real picture

Part No :: 749196231

Manufacturer: Würth Elektronik Midcom

Description: WE-FLEX FLEXIBLE TRANSFORMER FOR

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 749196231 PDF

Availability: 0 pieces

Unit Price: ~~$4.37903~~

Current price of 749196231 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

749196231 Specifications

Type	Description
Series:	WE-FLEX
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Configurable (For DC/DC)
Applications:	Flexible
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500VAC
Inductance @ Frequency:	8.3µH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.642" L x 0.472" W (16.30mm x 12.00mm)
Height - Seated (Max):	0.291" (7.40mm)
Footprint:	0.709" L x 0.642" W (18.00mm x 16.30mm)
Style:	-

Please confirm the specifications of the products when ordering.
