PCA14.5/6ER-U02S002

PCA14.5/6ER-U02S002

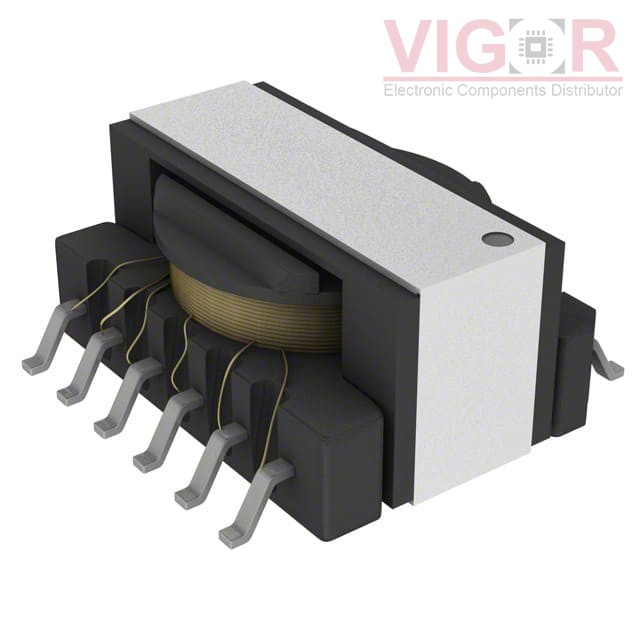

Image is for reference,
please contact us to get the real picture

Part No :

PCA14.5/6ER-U02S002

Manufacturer
TDK Corporation
Description
INDUCTOR/XFRMR 78.4UH MULTIWIND
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PCA14.5/6ER-U02S002 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PCA14.5/6ER-U02S002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCA14.5/6ER-U02S002 Specifications
Type Description
Series:PCA14.5/6ER
Package:Tray
Part Status:Obsolete
Type:Configurable (For DC/DC)
Applications:Capacitor Charger
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:500Vrms
Inductance @ Frequency:Parallel 78.4µH @ 10kHz, Series 2.8mH @ 10kHz
Frequency:-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Size / Dimension:0.642" L x 0.472" W (16.30mm x 12.00mm)
Height - Seated (Max):0.307" (7.80mm)
Footprint:0.642" L x 0.661" W (16.30mm x 16.80mm)
Style:-
