SR-3540-01

SR-3540-01

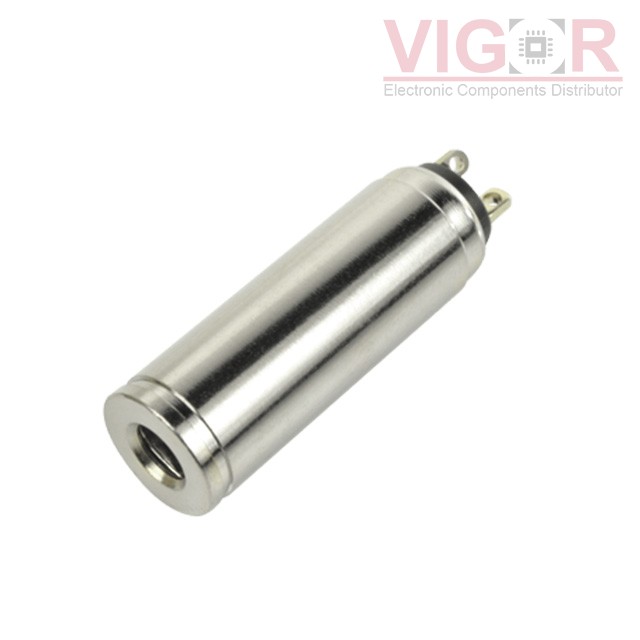

Image is for reference,
please contact us to get the real picture

Part No :

SR-3540-01

Manufacturer
CUI Devices
Description
AUDIO JACK, 3.5 MM, STRAIGHT, 4
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
SR-3540-01 PDF
Availability
0 pieces
Unit Price
$1.78000

Current price of SR-3540-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SR-3540-01 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:4 Conductors, 4 Contacts
Internal Switch(s):Does Not Contain Switch
Mounting Type:Free Hanging (In-Line)
Termination:Solder Eyelet(s)
Shielding:Unshielded
Features:Grounding Tab
Insulation Color:Black
Operating Temperature:-25°C ~ 70°C
