PCL712AS

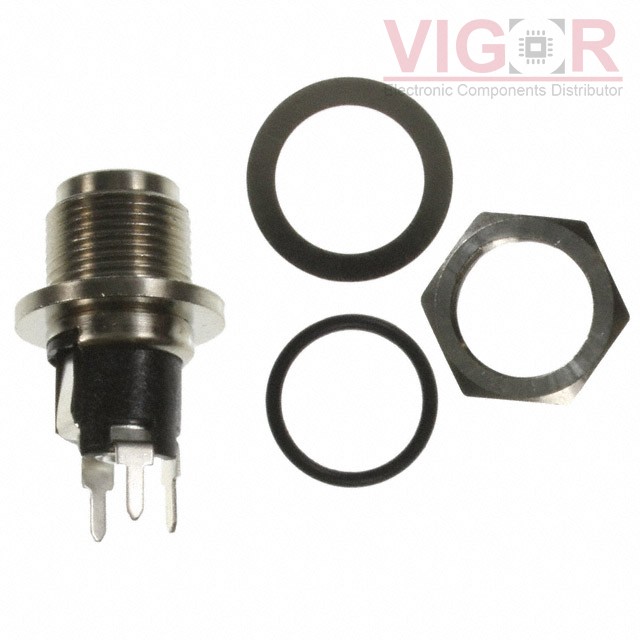

Image is for reference,
please contact us to get the real picture

Part No :: PCL712AS

Manufacturer: Switchcraft / Conxall

Description: CONN PWR JACK 2.5X5.5MM SOLDER

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: PCL712AS PDF

Availability: 544 pieces

Unit Price: ~~$5.50000~~

Current price of PCL712AS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCL712AS Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter:	0.098" (2.50mm ID)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Panel Mount, Through Hole
Mounting Feature:	Bulkhead - Front Side Nut
Termination:	Solder
Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock
Insulation Color:	-
Voltage - Rated:	30VDC
Current Rating (Amps):	5 A
Mating Length/Depth:	-
Ingress Protection:	IP68
Material Flammability Rating:	-

Please confirm the specifications of the products when ordering.
