686109188622

686109188622

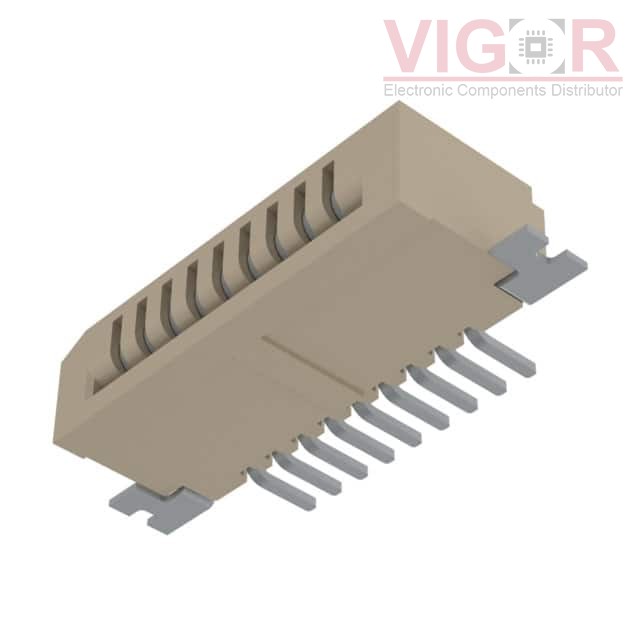

Image is for reference,
please contact us to get the real picture

Part No :

686109188622

Manufacturer
Würth Elektronik Midcom
Description
WR-FPC_1.00 MM SMT HORIZONTAL LI
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
686109188622 PDF
Availability
3000 pieces
Unit Price
$1.08000

Current price of 686109188622 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

686109188622 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:9
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.29mm ~ 0.34mm
Height Above Board:0.122" (3.10mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:-
Features:Low Insertion Force (LIF), Solder Retention
Voltage Rating:125V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
