0520452045

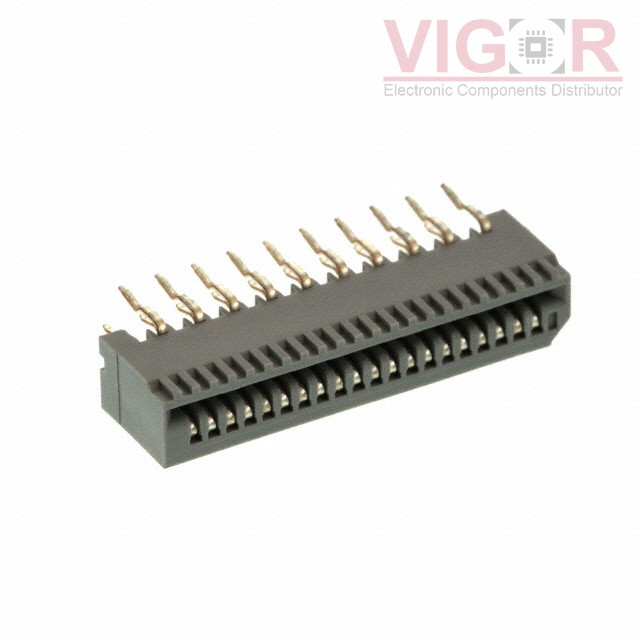

Image is for reference,
please contact us to get the real picture

Part No :: 0520452045

Manufacturer: Woodhead - Molex

Description: CONN FFC VERT 20POS 1.25MM PCB

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 0520452045 PDF

Availability: 2896 pieces

Unit Price: ~~$0.79000~~

Current price of 0520452045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0520452045 Specifications

Type	Description
Series:	52045
Package:	Tray
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Through Hole
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	20
Pitch:	0.049" (1.25mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.315" (8.00mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polybutylene Terephthalate (PBT), Polyester
Actuator Material:	-
Features:	-
Voltage Rating:	200V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
