686116183822

686116183822

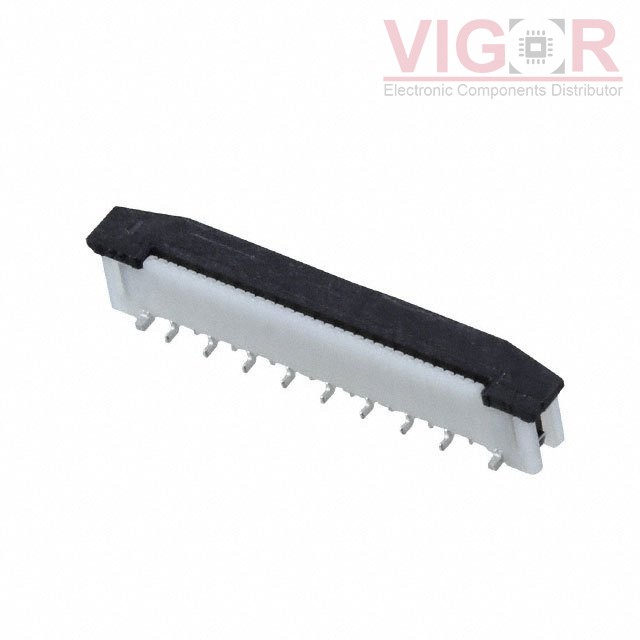

Image is for reference,
please contact us to get the real picture

Part No :

686116183822

Manufacturer
Würth Elektronik Midcom
Description
CONN FFC VERT 16POS 1MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
686116183822 PDF
Availability
813 pieces
Unit Price
$1.95000

Current price of 686116183822 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

686116183822 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 2 Sided
Number of Positions:16
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.128" (3.25mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA6T), Nylon 6T
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
