0936013548

0936013548

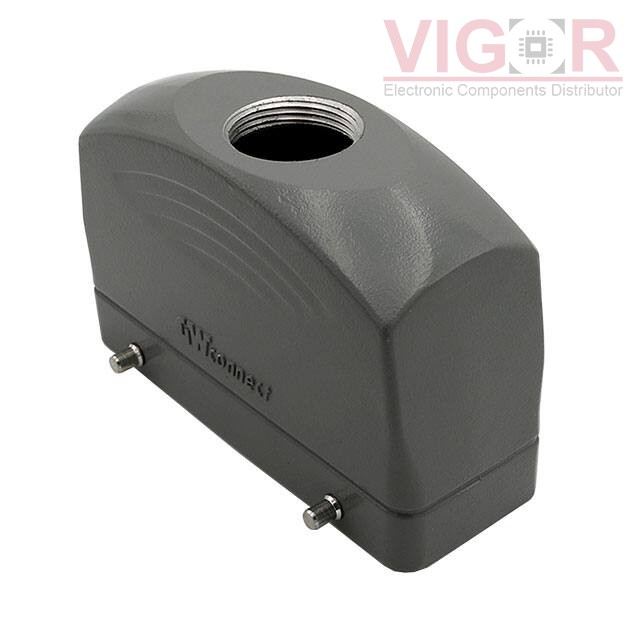

Image is for reference,
please contact us to get the real picture

Part No :

0936013548

Manufacturer
Woodhead - Molex
Description
CONN HOOD TOP ENTRY SZ24B PG21
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
0936013548 PDF
Availability
9 pieces
Unit Price
$21.20000

Current price of 0936013548 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0936013548 Specifications
Type Description
Series:GWconnect
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Top Entry
Size:24B
Lock Location:Locking Clip (2) on Base Bottom
Thread Size:PG21
Size / Dimension:4.744" L x 1.713" W x 2.972" H (120.50mm x 43.50mm x 75.50mm)
Housing Color:-
Features:-
Ingress Protection:IP66 - Dust Tight, Water Resistant
Housing Material:Aluminum Alloy, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
