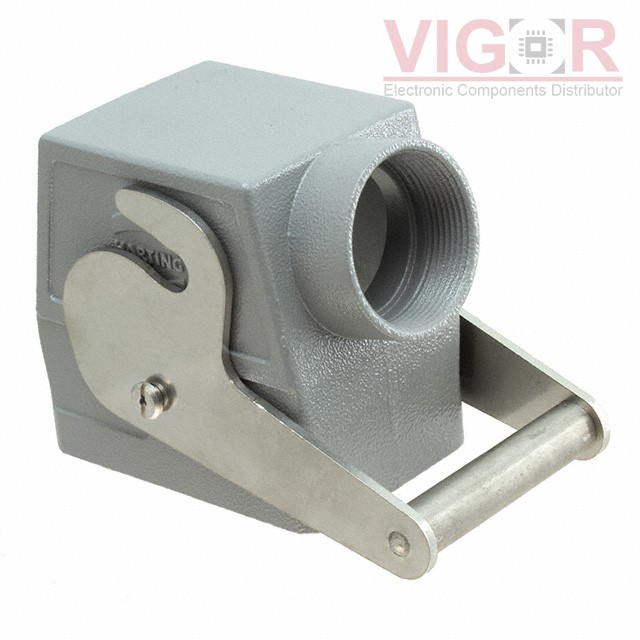

Image is for reference,
please contact us to get the real picture

Part No :

09200320581

Manufacturer
HARTING
Description
CONN HOOD SIDE ENTRY SZ32A PG29
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
09200320581 PDF
Availability
1 pieces
Unit Price
$162.74000

Current price of 09200320581 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200320581 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Side Entry
Size:32A
Lock Location:Locking Clip (1) on Hood
Thread Size:PG29
Size / Dimension:3.228" L x 2.205" W x 3.110" H (82.00mm x 56.00mm x 79.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
