0559173810

0559173810

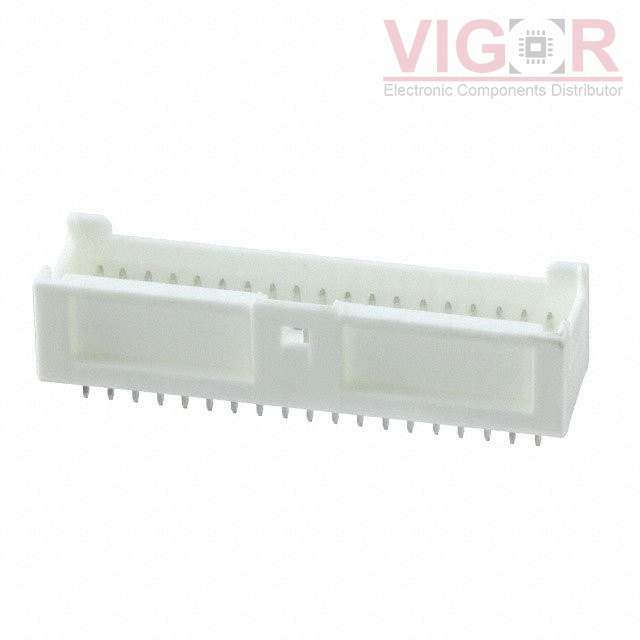

Image is for reference,
please contact us to get the real picture

Part No :

0559173810

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 38POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
0559173810 PDF
Availability
852 pieces
Unit Price
$1.85000

Current price of 0559173810 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0559173810 Specifications
Type Description
Series:MicroClasp 55917
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:38
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.150" (3.81mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.366" (9.30mm)
Insulation Height:0.384" (9.75mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
