M80-8501242

M80-8501242

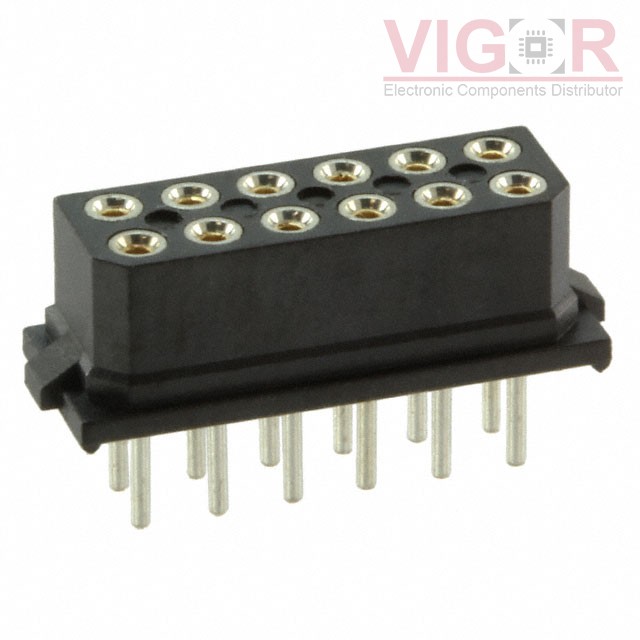

Image is for reference,
please contact us to get the real picture

Part No :

M80-8501242

Manufacturer
Harwin
Description
CONN RCPT 12POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
M80-8501242 PDF
Availability
165 pieces
Unit Price
$6.22000

Current price of M80-8501242 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M80-8501242 Specifications
Type Description
Series:Datamate L-Tek
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:12.0µin (0.30µm)
Insulation Color:Black
Insulation Height:0.202" (5.14mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.23mm, 7.85mm
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:800V
