1776522001

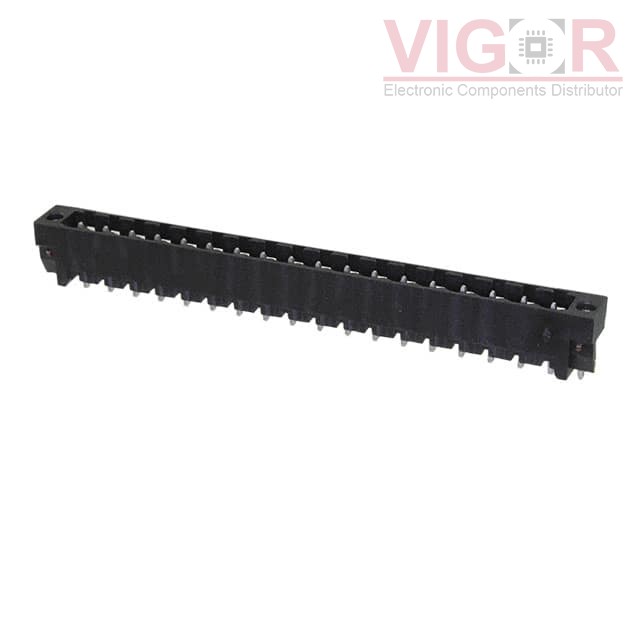

Image is for reference,
please contact us to get the real picture

Part No :

1776522001

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 18POS VERT 5.08MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
1776522001 PDF
Availability
78 pieces
Unit Price
$8.80000

Current price of 1776522001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Omnimate SL
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:18
Positions Per Level:18
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:Vertical
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:27.5A
Voltage - IEC:400 V
Current - UL:18.5 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 100°C
Contact Mating Finish:Tin
Features:Mating Flange, Solder Retention
