9401-0-15-15-23-27-10-0

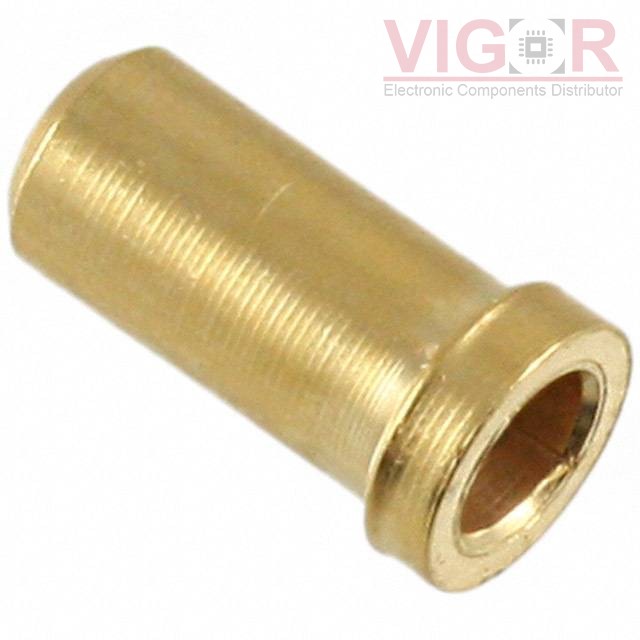

Image is for reference,
please contact us to get the real picture

Part No :: 9401-0-15-15-23-27-10-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT .045-.065 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: 9401-0-15-15-23-27-10-0 PDF

Availability: 21522 pieces

Unit Price: ~~$0.70000~~

Current price of 9401-0-15-15-23-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9401-0-15-15-23-27-10-0 Specifications

Type	Description
Series:	9401
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.230" (5.84mm)
Accepts Pin Diameter:	0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.088" (2.24mm)
Mounting Hole Diameter:	0.102" (2.59mm)
Flange Diameter:	0.120" (3.05mm)
Tail Diameter:	-
Socket Depth:	0.195" (4.95mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
