H2175-05

H2175-05

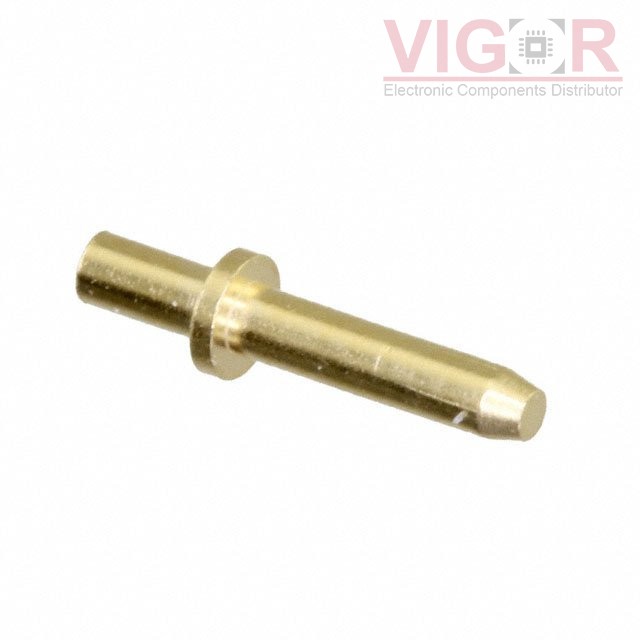

Image is for reference,
please contact us to get the real picture

Part No :

H2175-05

Manufacturer
Harwin
Description
CONN PC PIN CIRC 0.041DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
H2175-05 PDF
Availability
4952 pieces
Unit Price
$0.47000

Current price of H2175-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2175-05 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.041" (1.04mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.179" (4.55mm)
Length - Below Flange:0.082" (2.08mm)
Length - Overall:0.275" (6.98mm)
Flange Diameter:0.070" (1.77mm)
Mounting Hole Diameter:0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Gold
Contact Finish Thickness:-
