H2474-01

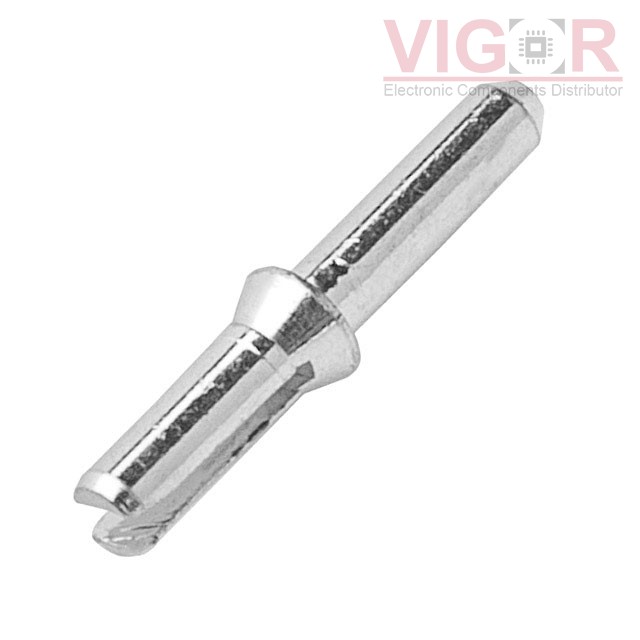

Image is for reference,
please contact us to get the real picture

Part No :: H2474-01

Manufacturer: Harwin

Description: CONN PC PIN CIRC 0.039DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: H2474-01 PDF

Availability: 0 pieces

Unit Price: ~~$0.18980~~

Current price of H2474-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2474-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End, Slotted
Pin Size - Above Flange:	0.039" (0.99mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.157" (3.99mm)
Length - Below Flange:	0.108" (2.74mm)
Length - Overall:	0.295" (7.49mm)
Flange Diameter:	0.063" (1.60mm)
Mounting Hole Diameter:	0.036" ~ 0.041" (0.91mm ~ 1.03mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" ~ 0.126" (0.79mm ~ 3.20mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
