8000-0-01-15-00-00-03-0

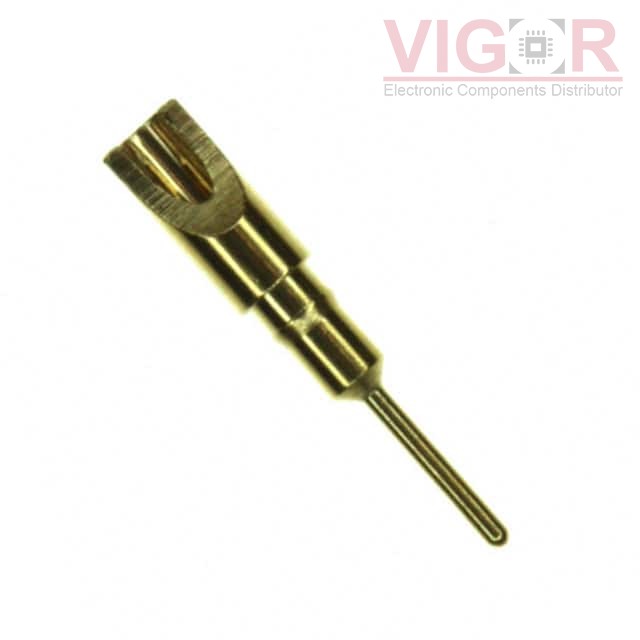

Image is for reference,
please contact us to get the real picture

Part No :: 8000-0-01-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 8000-0-01-15-00-00-03-0 PDF

Availability: 8816 pieces

Unit Price: ~~$0.29000~~

Current price of 8000-0-01-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8000-0-01-15-00-00-03-0 Specifications

Type	Description
Series:	8000
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Wire
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.259" (6.58mm)
Length - Below Flange:	-
Length - Overall:	0.417" (10.59mm)
Flange Diameter:	0.072" (1.83mm)
Mounting Hole Diameter:	0.057" (1.45mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
